The whole body is made of 304 stainless steel, using silver-white frosted spraying method, the internal sealing of the equipment is non-toxic and harmless, and it meets the requirements of food-grade hygiene.
Machine Parameters:
| Model | RJ-618 standard | RJ-618 with front conveyor belt |
| Dimension | 1880*820*1280mm | 2280*850*1280mm |
| Power | 3.8kw | 4kw |
| Feeding Tank Dimension | 210*200mm | 210*200mm |
| Max. Feeding Length | 680mm | 680mm |
| Cutting Thickness | 1-30mm adjustable | 1-30mm adjustable |
| Cutting Temperature | above -4 degree | above -4 degree |
| Function | slicing | slicing and separating into 1-99 pieces |
Machine Features:
※ The machine is equipped with three layers of protection (cutter brake device, cutting bin door sensor switch and material door sensor switch).
※ Wrong circuit configuration/lack of phase overvoltage protector. When the power cord is connected in reverse or the phase sequence is wrong, the machine will not be powered on. And the overvoltage/undervoltage protection value can be freely set to activate automatic power-off protection.
※ The design of the propulsion screw structure reduces the stagnation rate of propulsion and improves production efficiency and production quality.
※ Through the display screen, the advancing distance of the propulsion device can be controlled to adjust the thickness of the cutting material. The working status of the equipment and fault alarms can also be monitored.
※ Equipped with servo motor, it is more accurate, stable and fast during the cutting process. The driver's automatic gain mode can automatically adjust the performance during material cutting and enhance stability.
※ Electrical components are all from well-known brands. Siemens circuit breakers, Siemens contactors, Omron relays, and reducer motors are from Nord (Germany), Delta servo motors (Taiwan), and Delta PLC controllers (Taiwan). Equipped with a cutting knife imported from Germany.
※ The front conveyor belt can be set with a delay dividing function, so that the meat slices are divided into 1-99 pieces while cutting. Suitable for subsequent use with other machines.

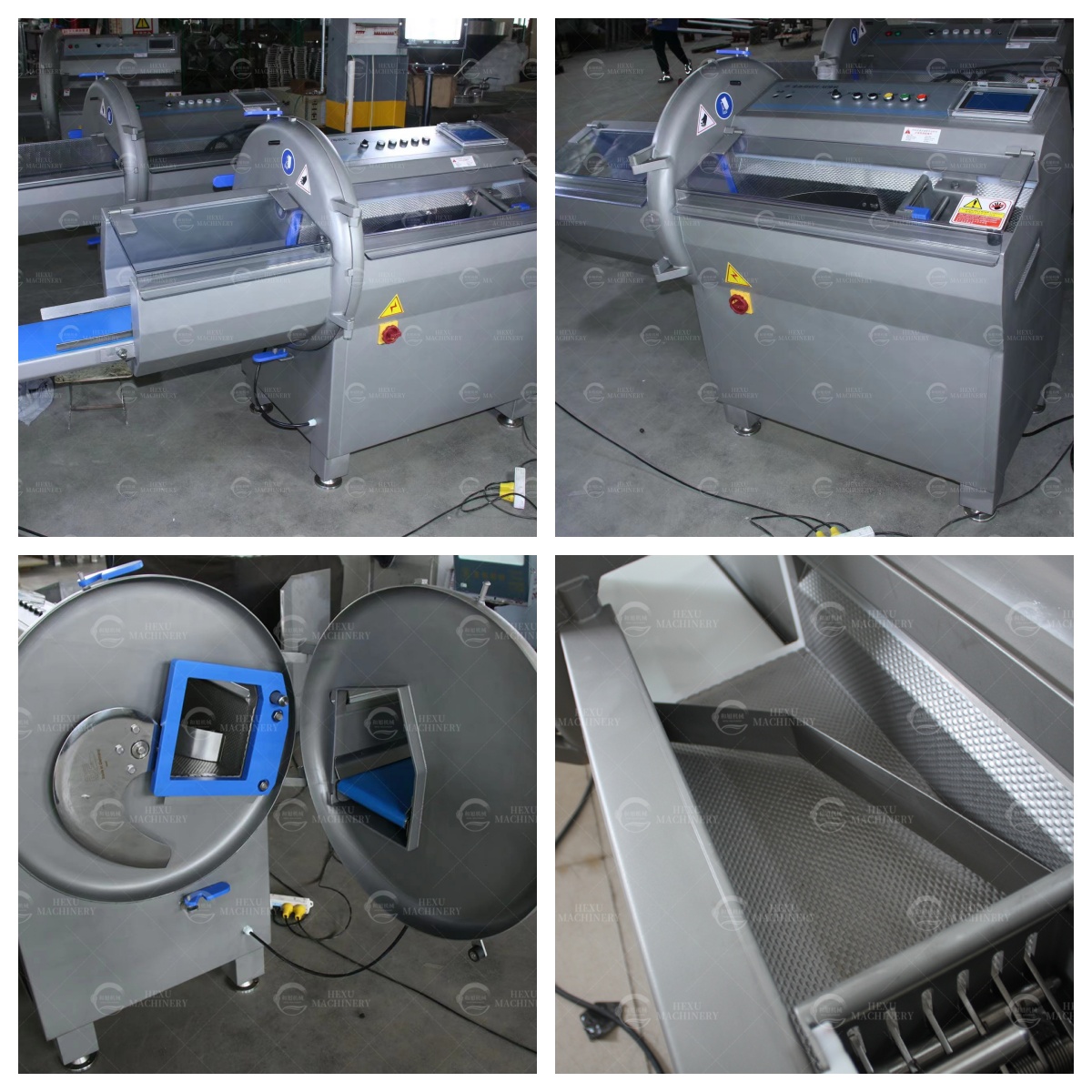

Finished Products Display:
