This machine is used for sorting and grading round fruits and vegetables such as apples, potatoes, onions, tomatoes, sweet potatoes, oranges, plums, etc. According to the hardness of the material, we can use two different ways of hopper outlets and conveyor belt outlets.
Machine Parameters:
Model: HX-30 Roller Type Sorting Machine
Dimension: 4000*865*1390mm/customized
Voltage: 220V/380V/customized
Power: 2.2kw
Capacity: 500-1000kgs per hour

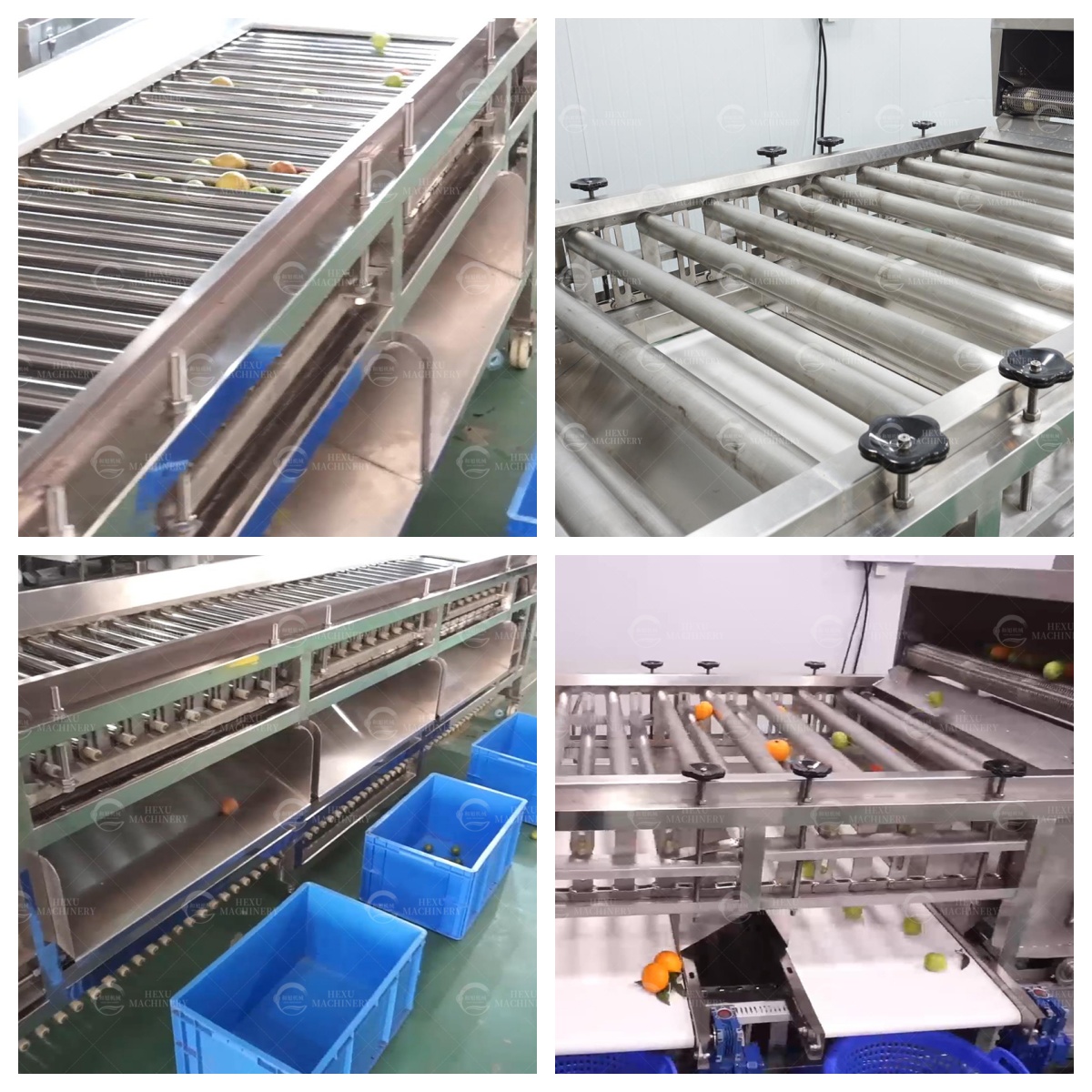

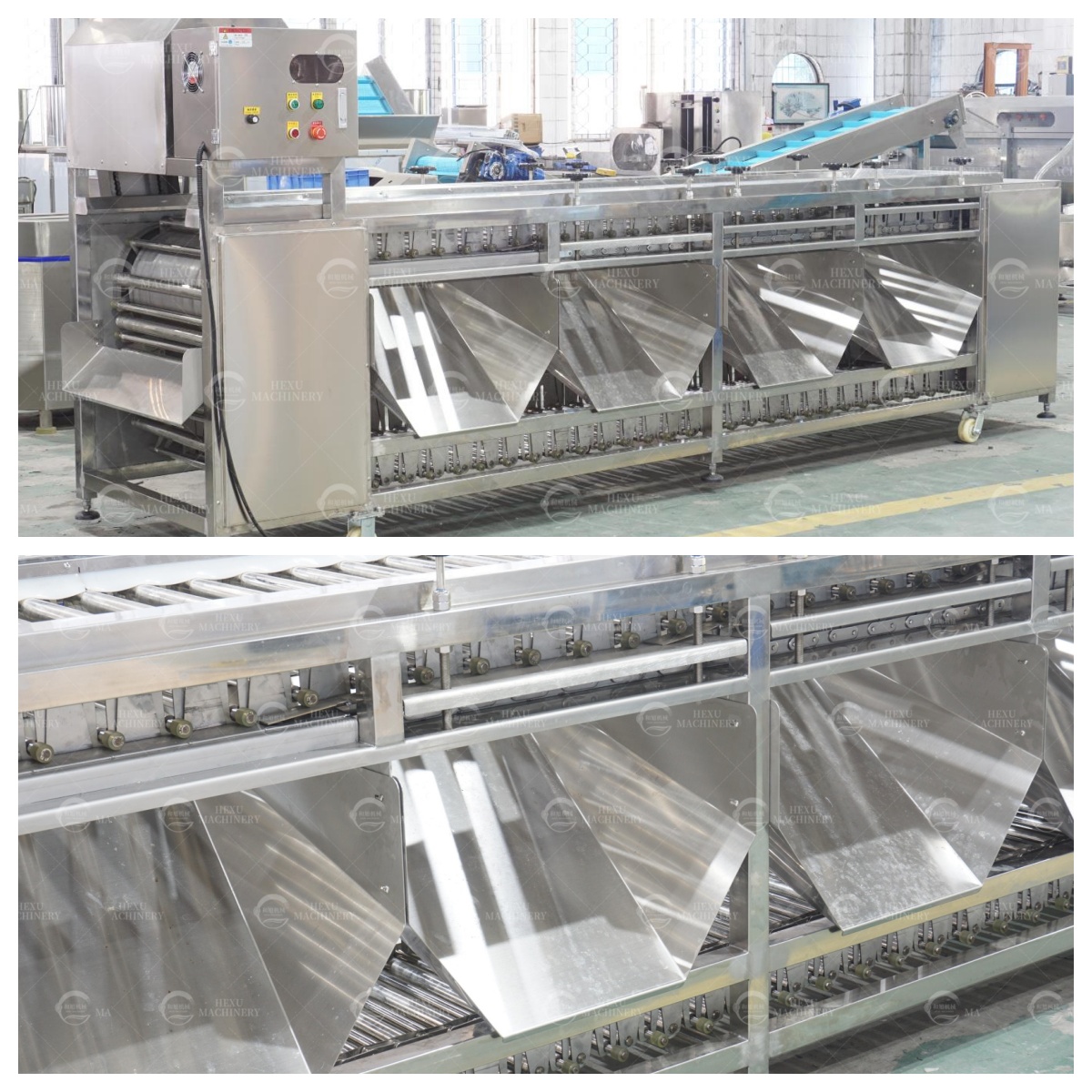

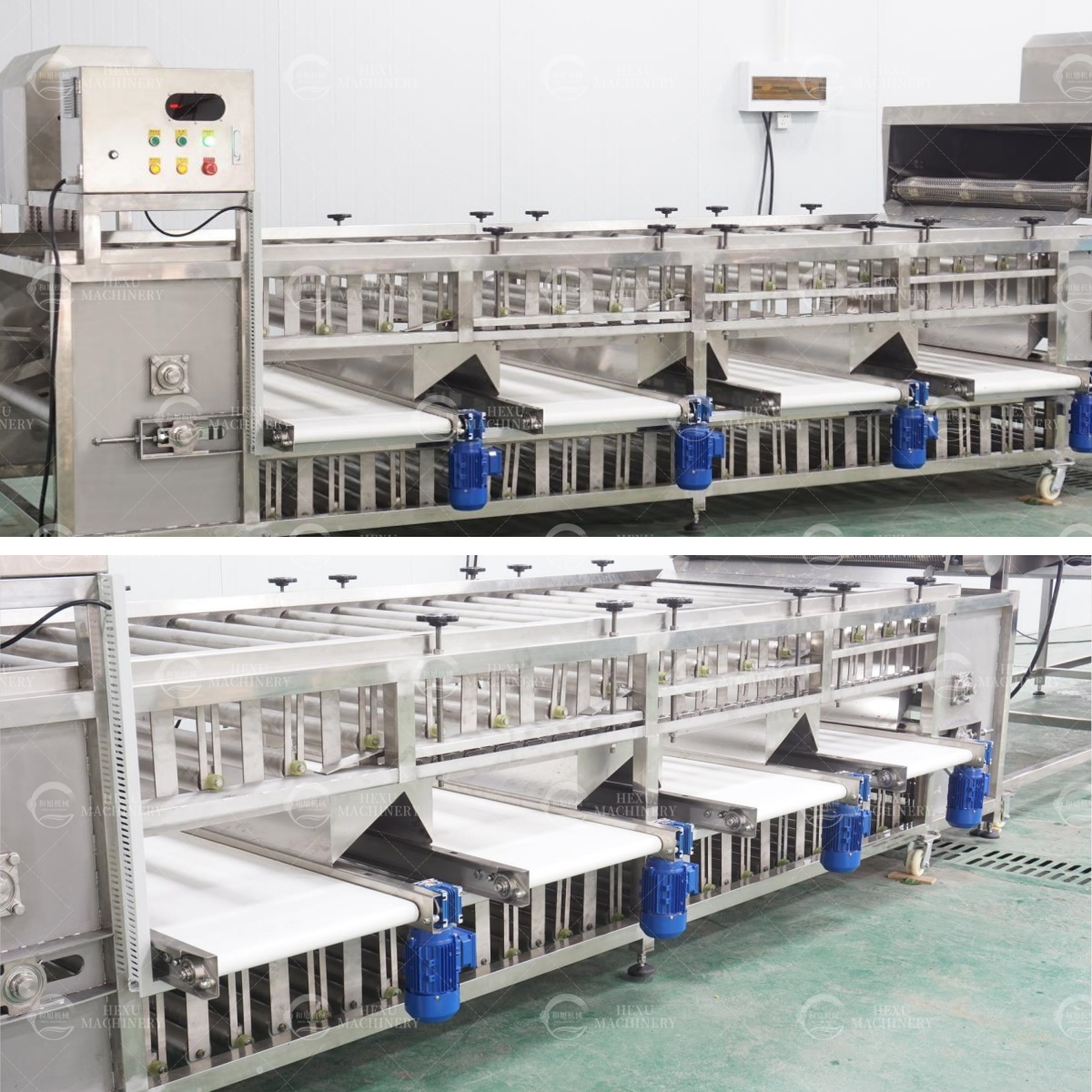

Machine Photos:
Machine Features:
※ The material is pushed forward with the rotation of the rollers, which can avoid the damage to the conveying material.
※ The gap between the rollers gradually increases. During the forward parallel movement, when the fruits reach the position of corresponding size, they fall down on the belt from the gap between the roller bars.
※ The feeding inlet is safe and convenient to ensure that the material is not easy to fall off in conveying, continuous feeding, and easy to operate.
※ Grading size can be adjustable to customized size range.
※ According to your fruits, we have hopper type outlet and conveyor belt type outlet to choose.
※ The whole machine can be customized as your need. It can be combined with other machines like washing, drying to be a full automatic processing line for different fruits.
Finished Products Display:
