This machine makes use of the natural mechanical principle of water tumbling and scouring to keep the vegetables from being damaged during the whole washing process, so as to achieve the purpose of industrialized standardized process of cleaning vegetables.
It can not only be used for material cleaning, removing impurities, and dewatering, but also can thoroughly remove light or small heavy impurities such as sediment, dust, and pebbles in vegetables. We can also add ozone function to effectively sterilize and remove pesticide residues in vegetables at the same time.
The special design of washing tank enables vegetables to be washed by 360 degree cyclic turnover. The machine makes use of the natural mechanics principle of water flow tossing and scouring, protecting vegetables from damaging in the whole washing process, so as to achieve the goal of industrialized and standardized process of washing vegetables.
Machine Parameters:
Model: JC-330 Automatic Vortex-Type Washing Machine
Dimension: 4020*1710*1650mm/customized
Voltage: 220V/380V/customized
Power: 4.4kw
Total Volume of the Machine: 1300L
Capacity: 1000-2000kgs per hour
Machine Features:
※ Through the frequency conversion control system, the upper filter can adopt different rotation speeds according to different materials in order to effectively filter out impurities, hair and other fine floats, and overflow with foam accumulated by vegetable acid and vegetable juice.
※ The lower nylon isolation protection plate and the filter are precisely and mechanically matched. During the water circulation process, the vegetable foam, finely divided impurities, hair, etc. are completely isolated, to ensure the water which circulating in the tank is clean.
※ The machine has valves outside the washing tank to adjust the direction and strength of water flow for different materials.
※ Vibration supporting system and motor adopt imported technology, which can effectively maintain both high frequency and low amplitude transportation, and protect the integrity of vegetables.
※ The suspension double-row spraying system will form a high-density spraying area. Vegetables will be washed by circulating water flow in the tank and then delivered to the vibrating screen. At this time, the lower vibration and upper spraying will wash vegetables from all directions.
※ Fast-dismantling and -assembling vibrating screen is convenient for users to replace sieves with different apertures. It is suitable for washing and filtering different kinds of materials.
※ The overflow renewal system integrates functions such as flooding transition tank, automatic overflow, maintaining water level, renewing water source and discharging waste water, keeping the water circulation in the tank consistently clean and environmentally friendly.

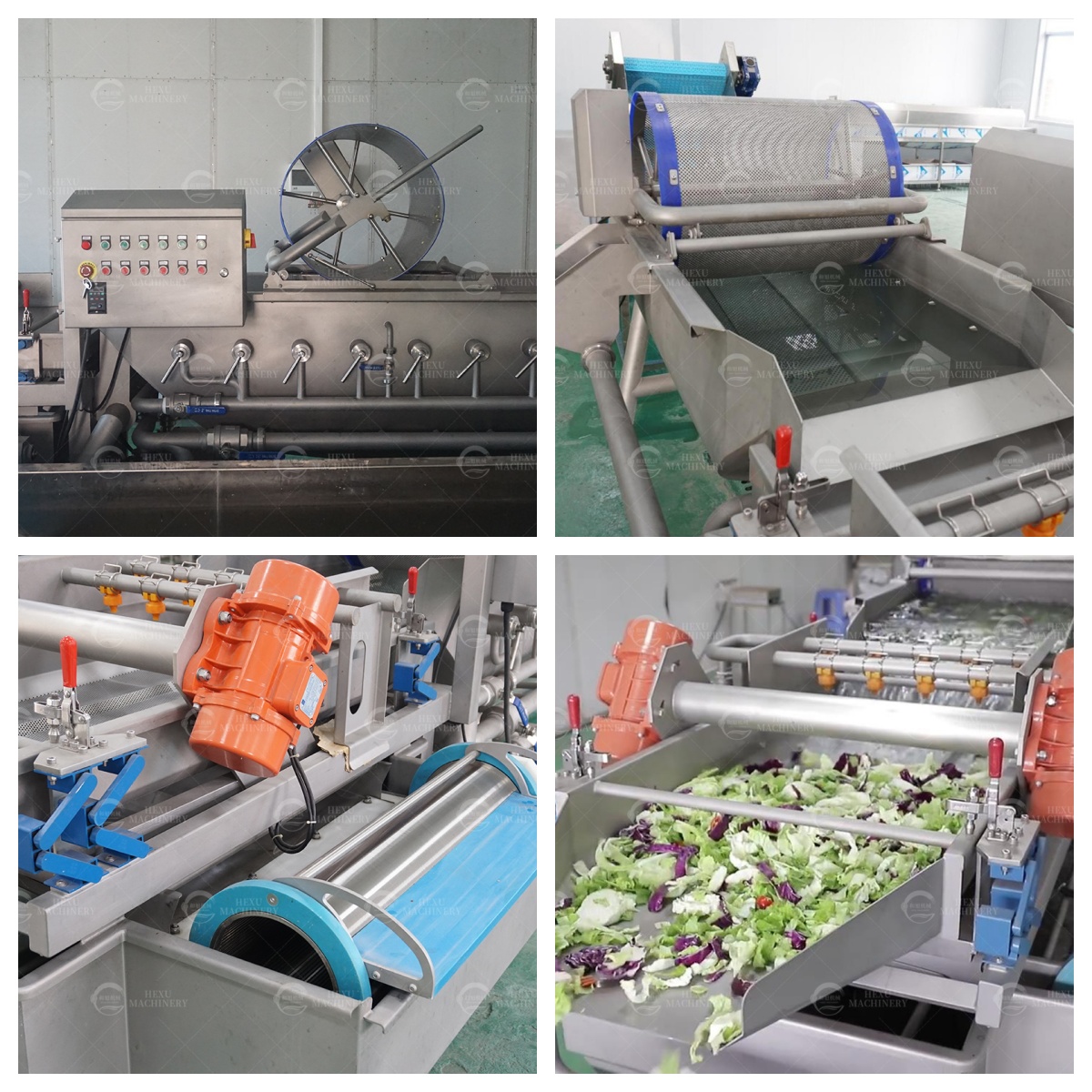

Finished Product Display:
