After the raw materials are added to the feeding hopper, the juice is squeezed out under the action of multiple pressure rollers and then separated.
Machine Parameters:

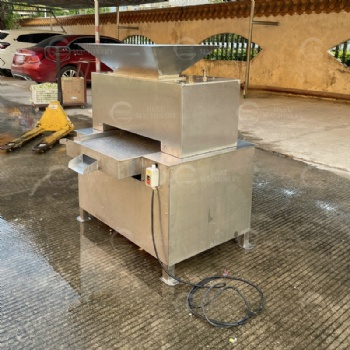

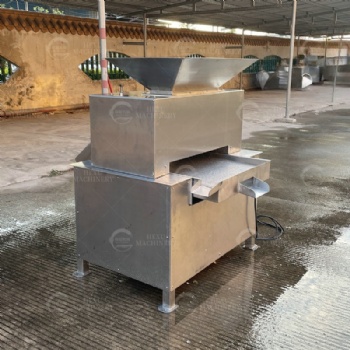

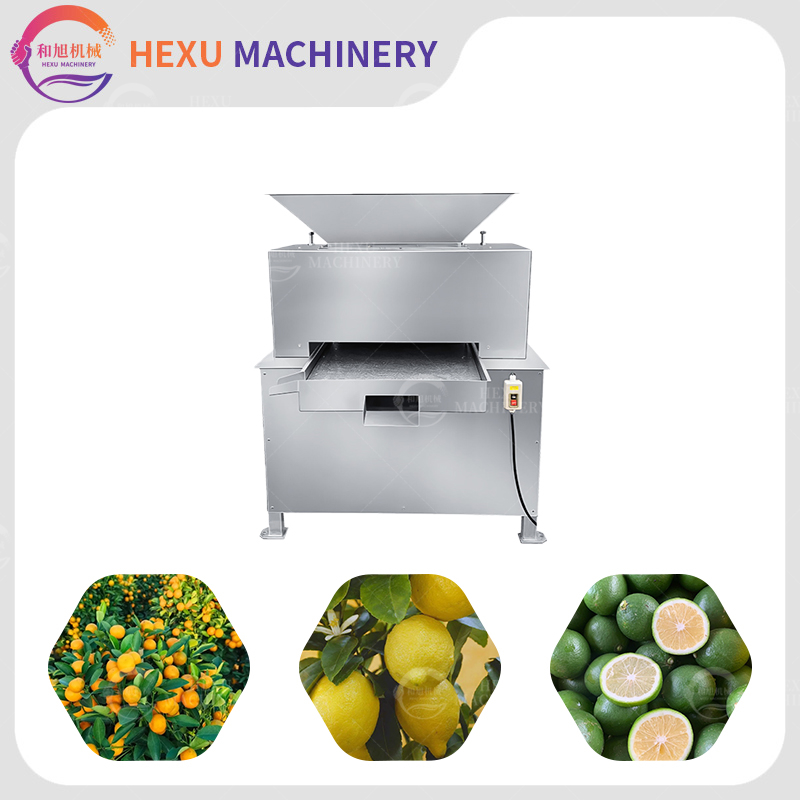

Model: GZ-650 Lemon Juice Extracting Machine
Dimension: 950*940*1390mm
Voltage: 220V/380V/customized
Power: 2.2kw
Handling Capacity: 500-1000kg per time

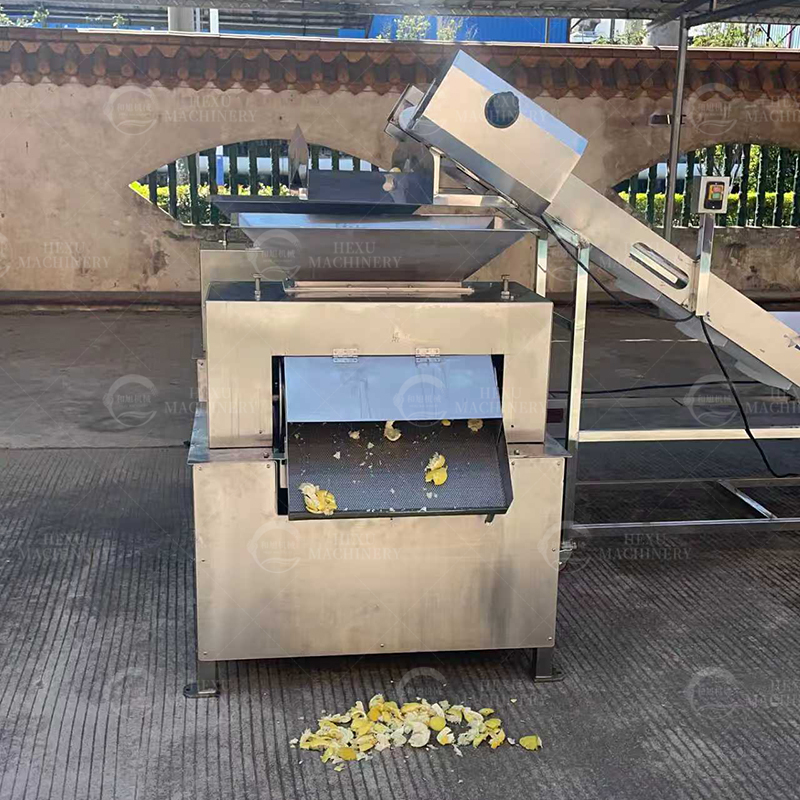

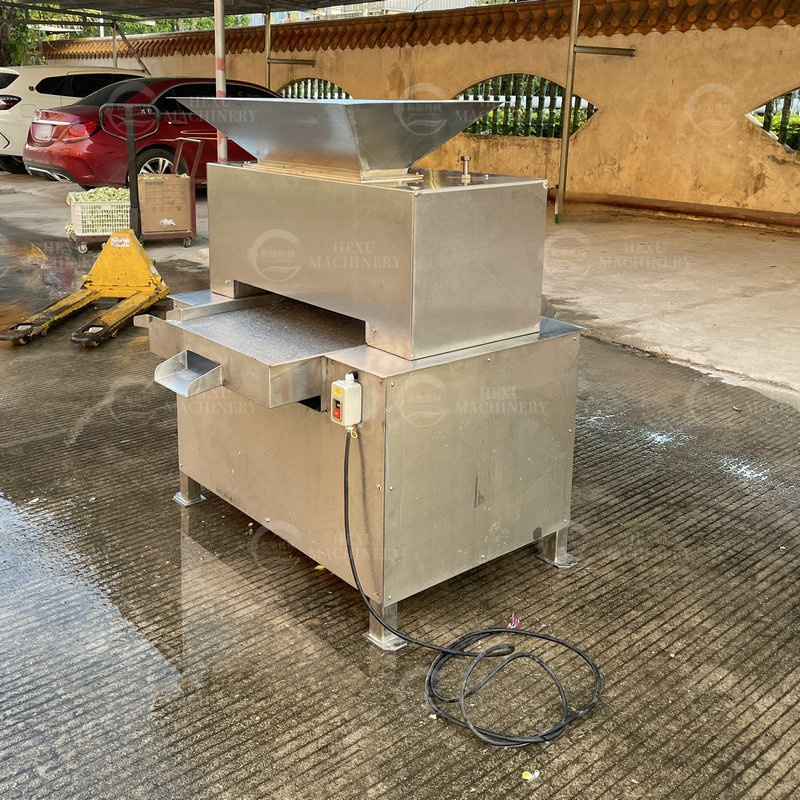

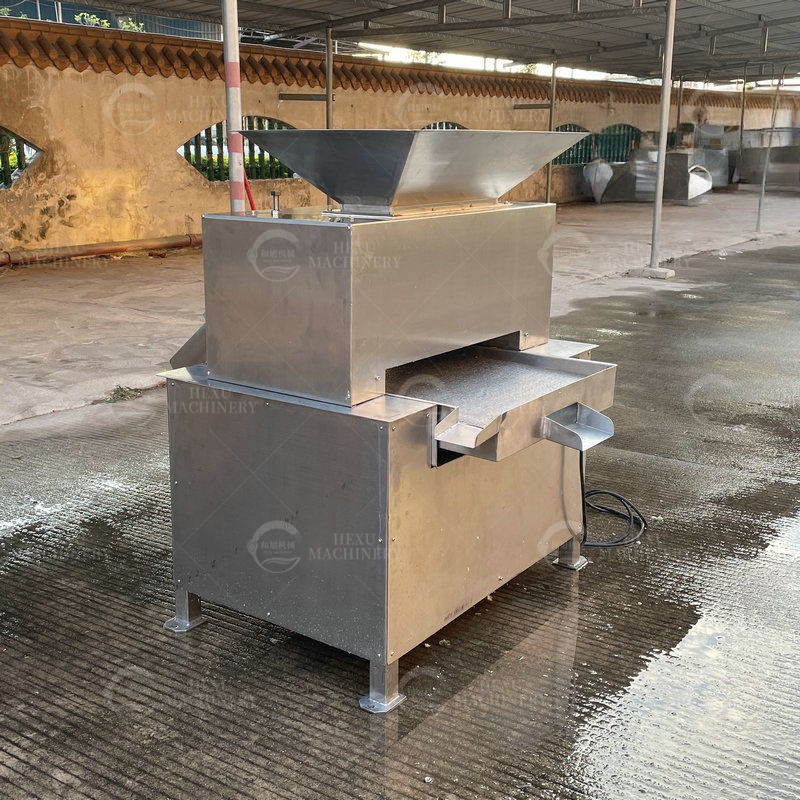

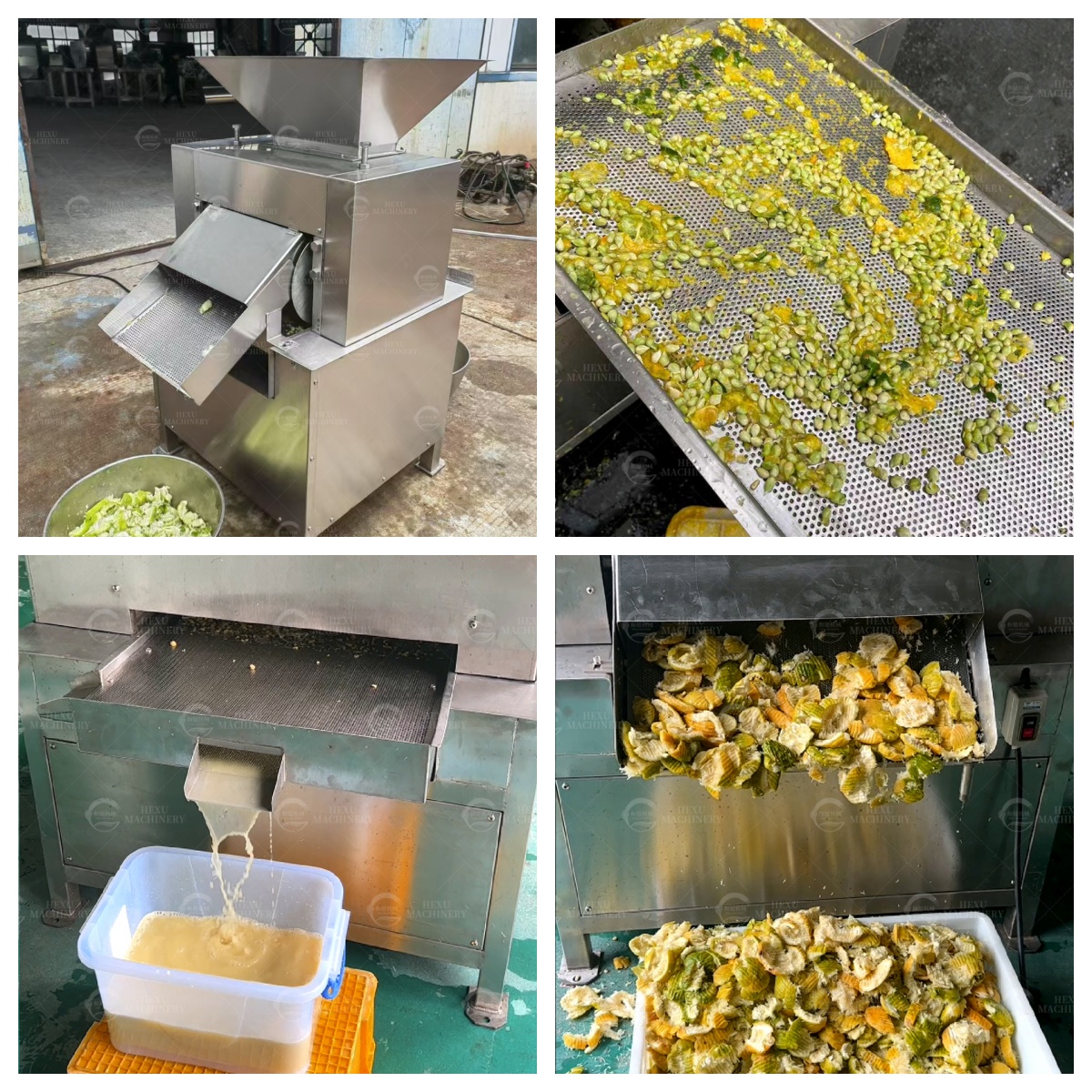

Machine Photos:
Machine Features:
※ The machine mainly consists of the pressure roller, feeding hopper, juice discharge hopper, peel discharge hopper, frame, transmission and other parts.
※ When in operation, after the power is connected, the materials are poured into the feeding hopper. First, the materials are cut by the blades and then enter the first and second pressure rollers for squeezing and crushing. Then, they enter the second and third pressure rollers for juicing. The peels are discharged from the peel hopper, and the juice and part of the fruit pulp are discharged from the juice hopper, thus achieving the purpose of juicing.
※ The feeding inlet is enlarged to facilitate continuous feeding or integration with production line. All four corners are designed with rounded corners, enhancing the safety of machine operation.

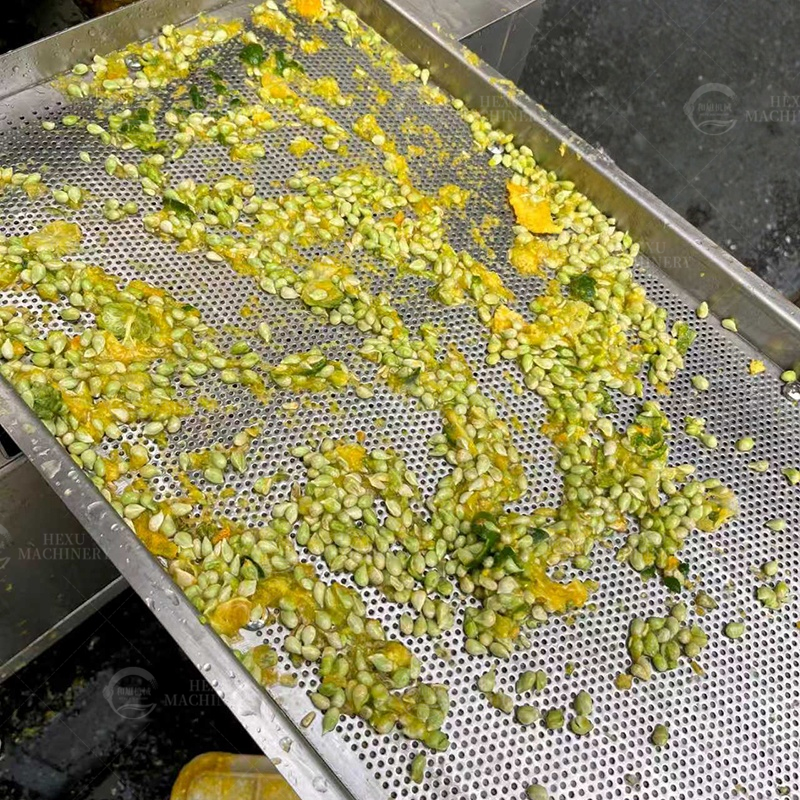

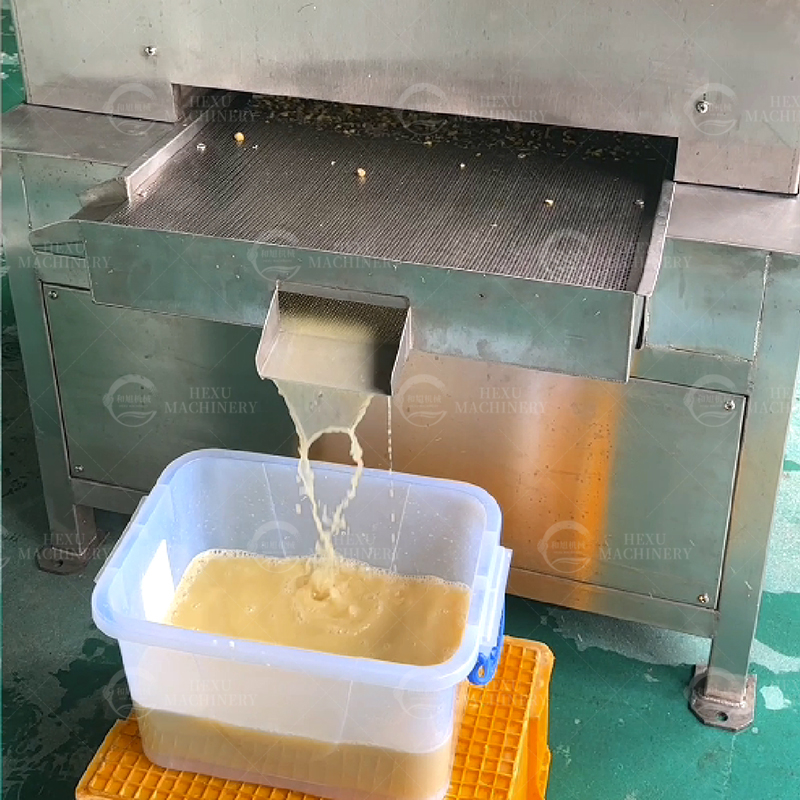

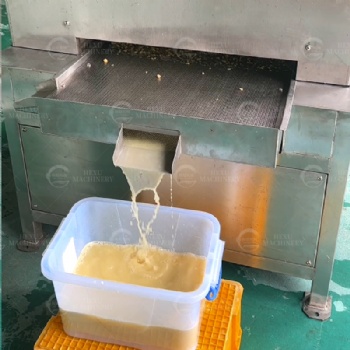

※ The juice and part of the pulp are discharged from the juice hopper, and the peels are discharged from the peels hopper, automatically separating from the juice.
