This machine is a highly efficient grading device specially designed for vegetables like broccoli and cauliflower. It utilizes the different gaps of multi-level vibrating screens and, through the self-weight of the materials and the principle of vibration ejection, realizes the automatic classification of materials according to their size.
Machine Parameters:
Model: JC-500 Vibrating Grading Machine
Main Machine Dimension:5000*1920*2380mm/customized
Voltage: 380V/customized
Power: 5.15kw
Handling Capacity: 1000-2000kgs per hour
Grading Size: customized

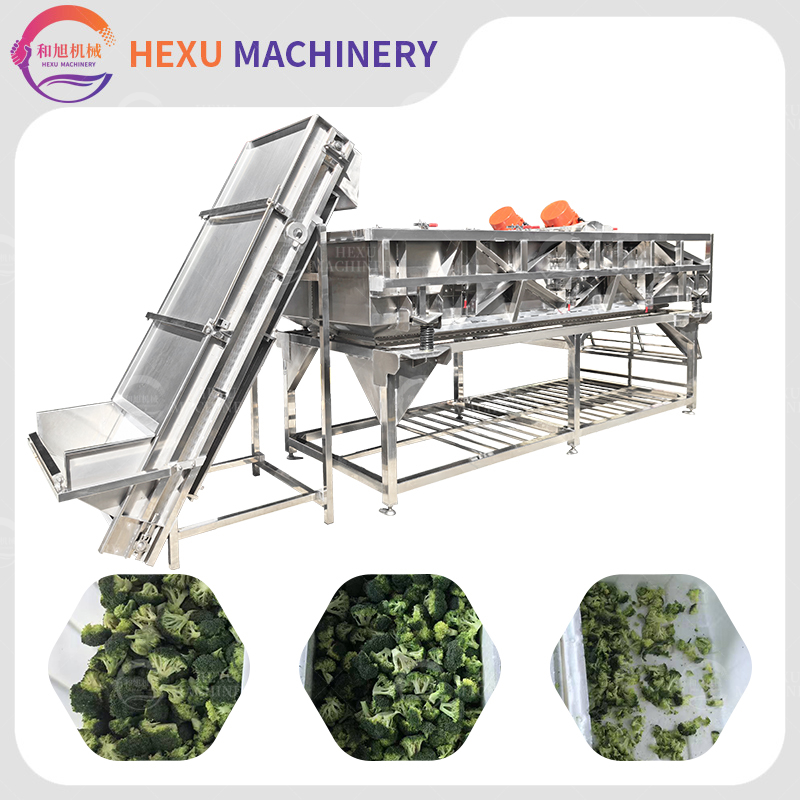

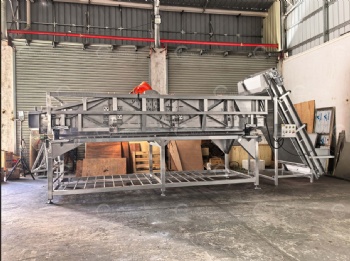

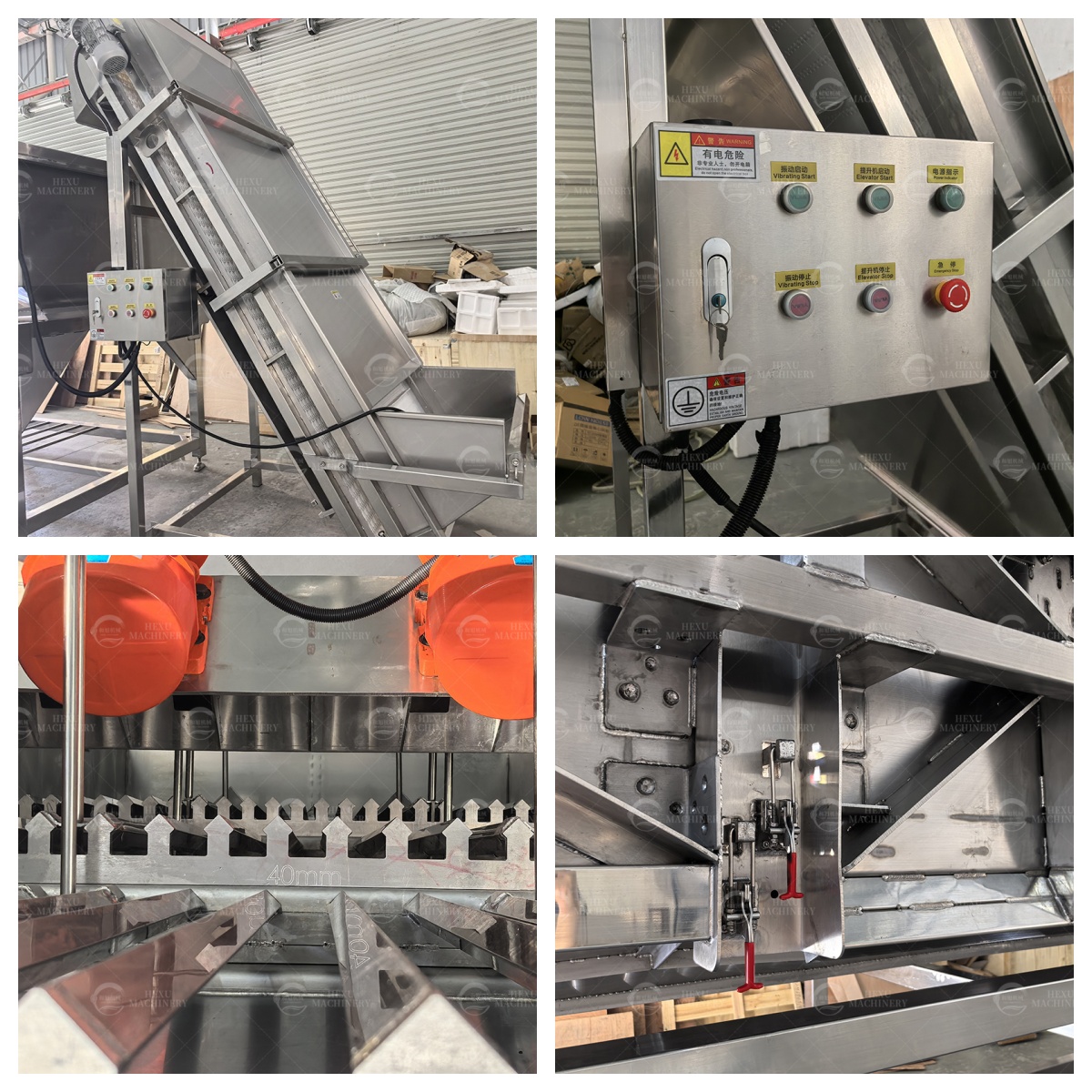

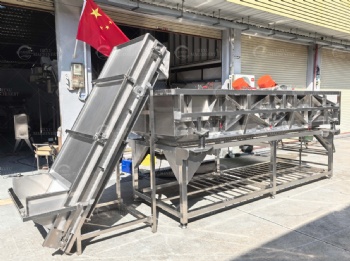

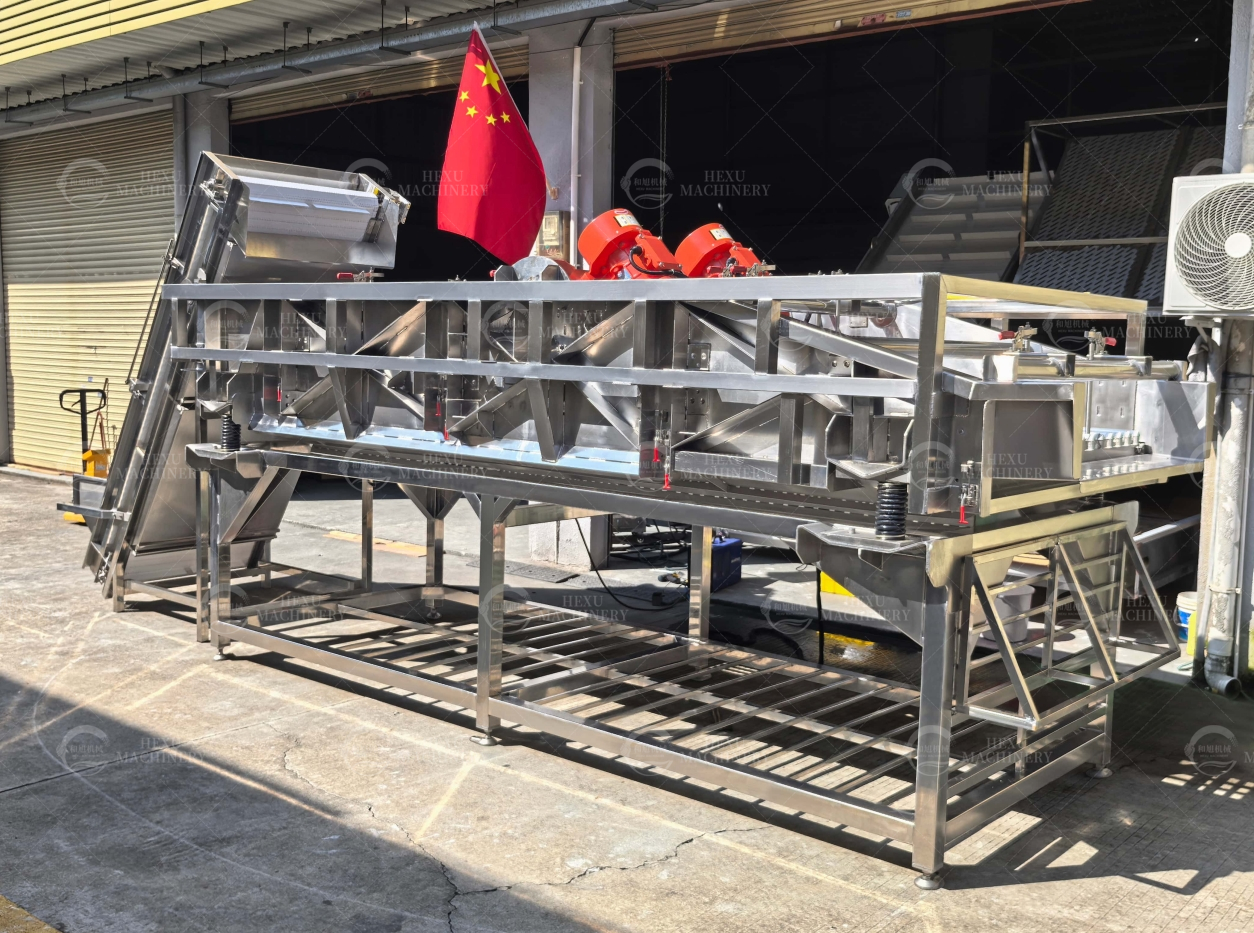

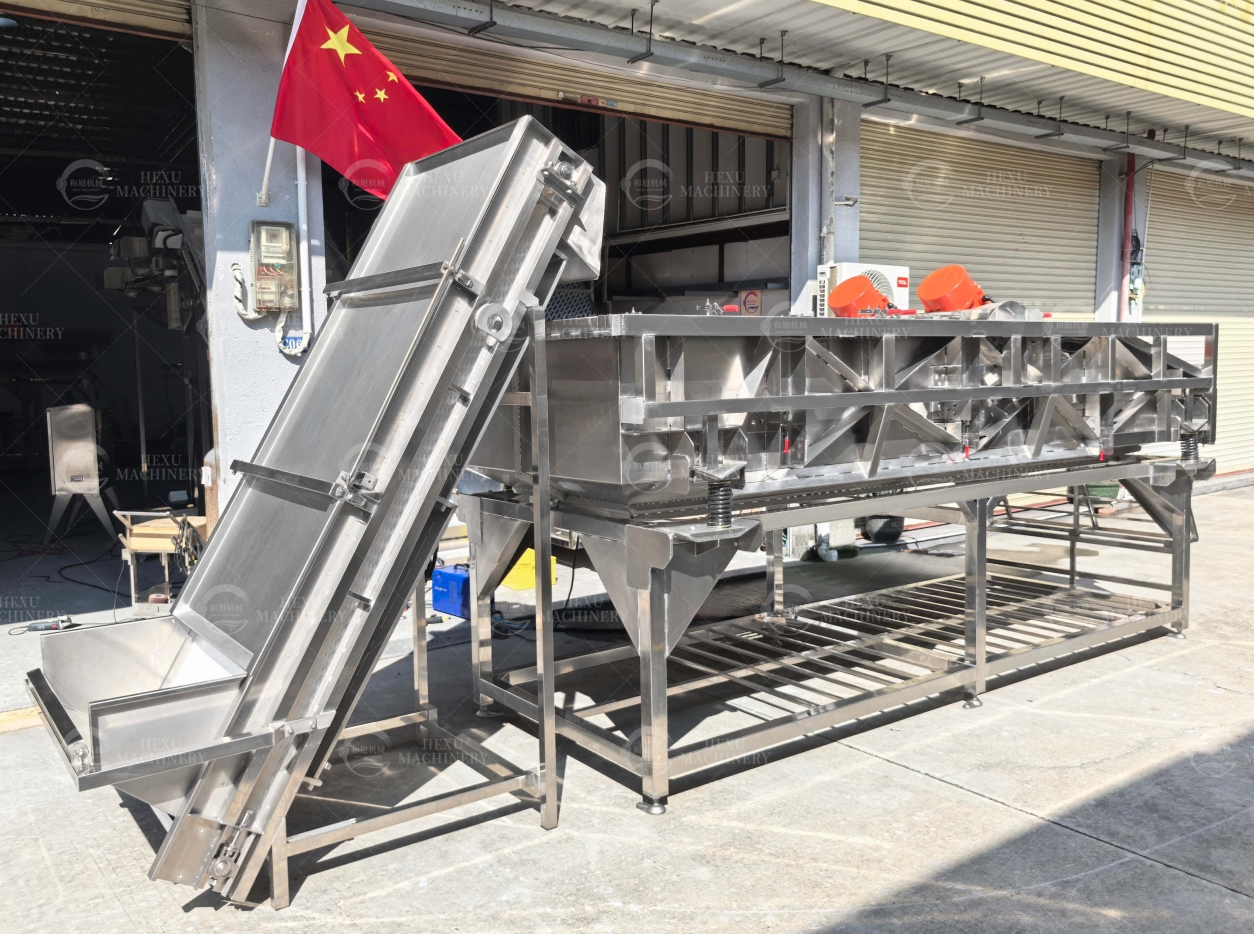

Machine Photos:
Machine Features:
※ The whole machine is made of thickened 304 stainless steel plate, which is sturdy and durable.
※ Under the action of the vibrating motor, the material is conveyed forward and falls into the screen of the corresponding size.
※ The stainless steel screen is equipped with a quick-release device, allowing for easy replacement with different specifications.
※ The dimension of the machine can be customized according to production volume requirements or factory area. The screen mesh can be customized into round rod type, round hole type, etc. according to different materials.
Finished Product Display:
