After the raw material enters the machine, it is pressed under the push of the screw, and the squeezed juice flows into the juice holder at the bottom through the filter, while the skin and the core are discharged through the annular gap formed between the spiral and the conical part of the pressure regulation. The pressure regulator moves along the axis to adjust the size of the void, thus adjusting the resistance of slag discharge.
Machine Parameters:

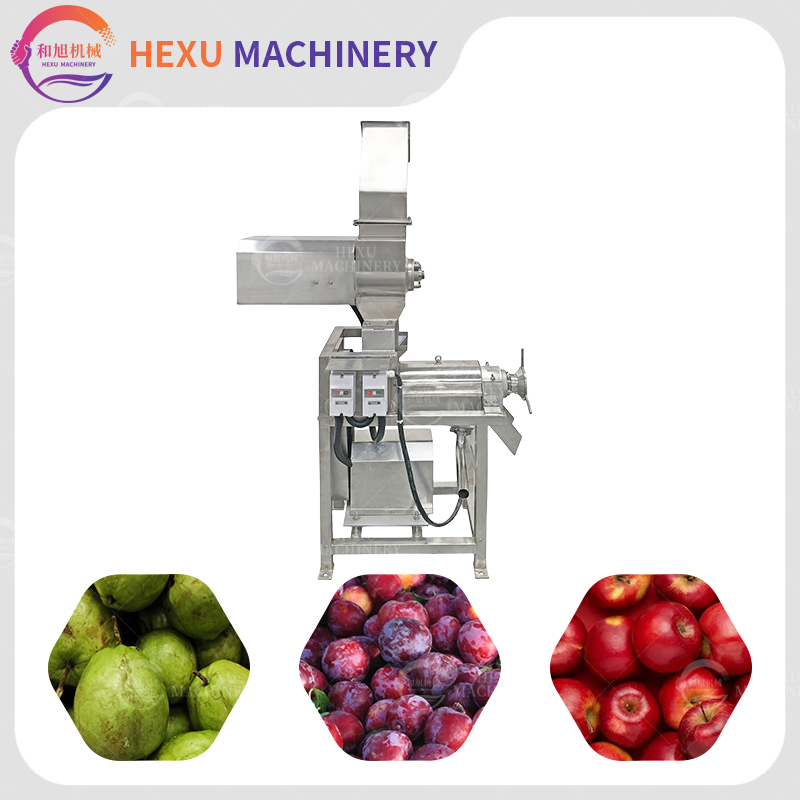

Model: GZ-500 Apple Juice Extracting Machine with Crusher
Dimension: 1100*500*1700mm
Voltage: 220V/380V/customized
Power: 3kW
Handling Capacity: 300-500kg per hour

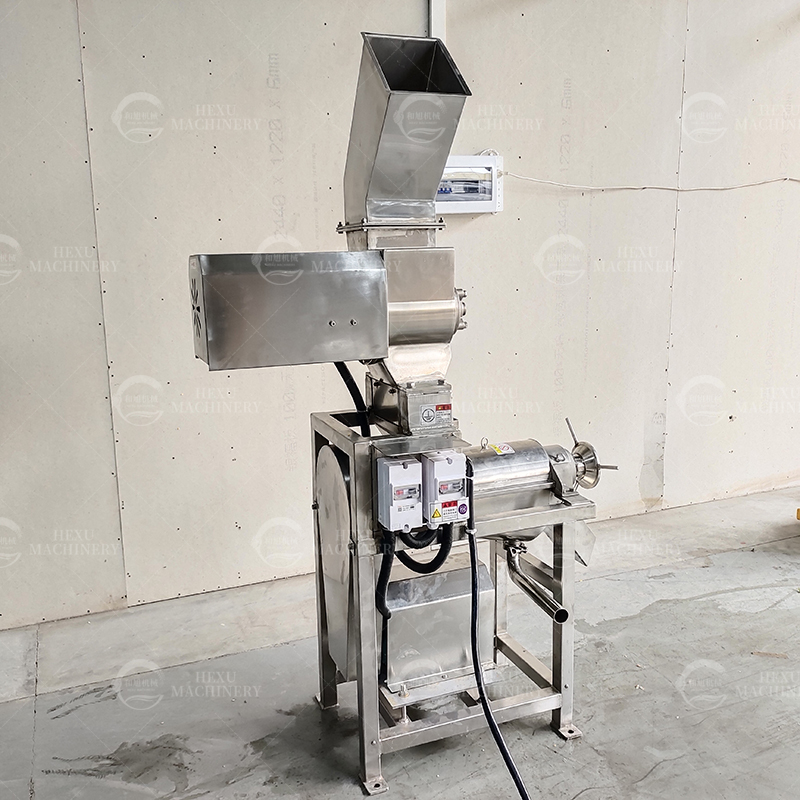

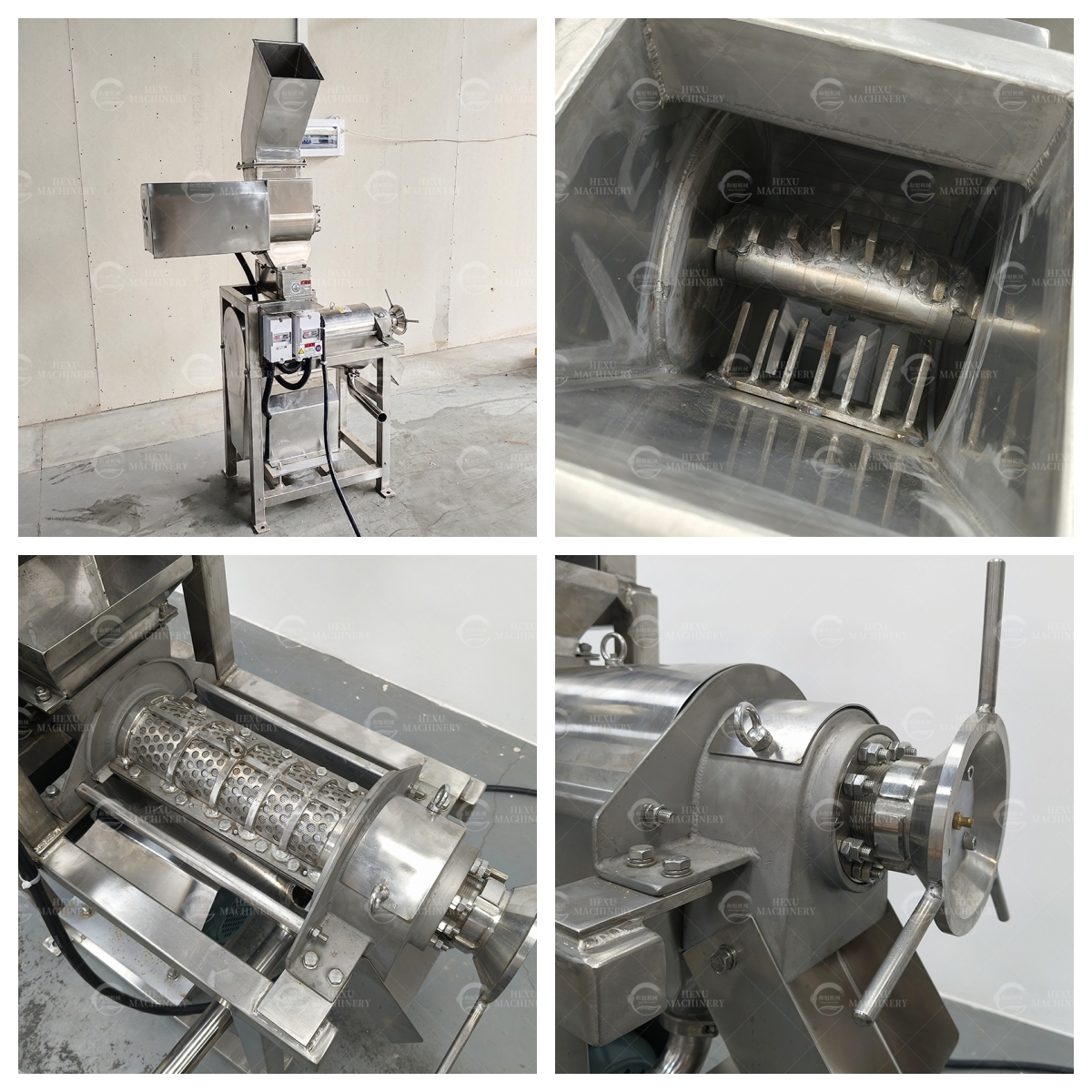

Machine Photos:
Machine Features:

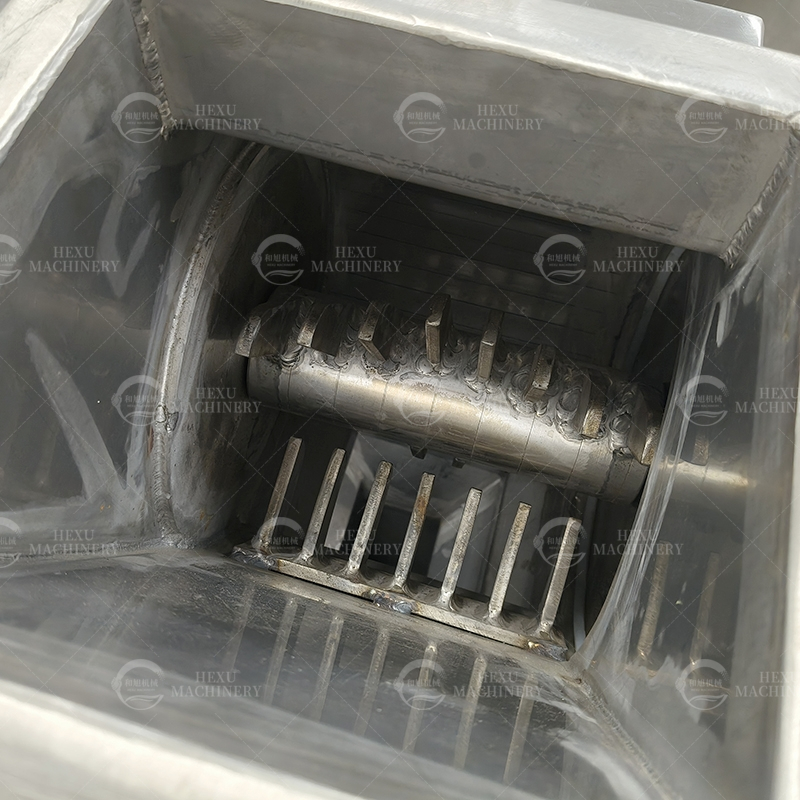

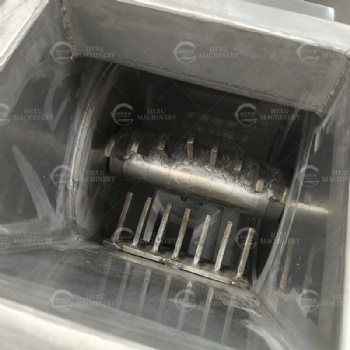

※ When in operation, the motor drives the main shaft to rotate. The materials are crushed by the high-speed rotating hammer pieces and then directly enter the screw juicing system under the action of centrifugal force.
※ The bottom diameter of the spiral gradually increases along the direction of the slag outlet while the pitch gradually decreases. When the material is pushed forward by the screw, due to the reduction in the volume of the screw cavity, the material is squeezed.

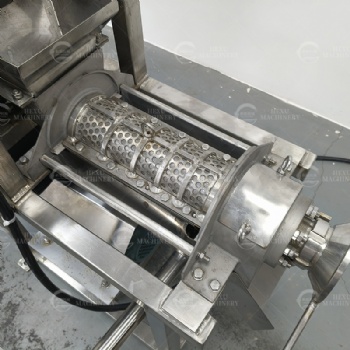

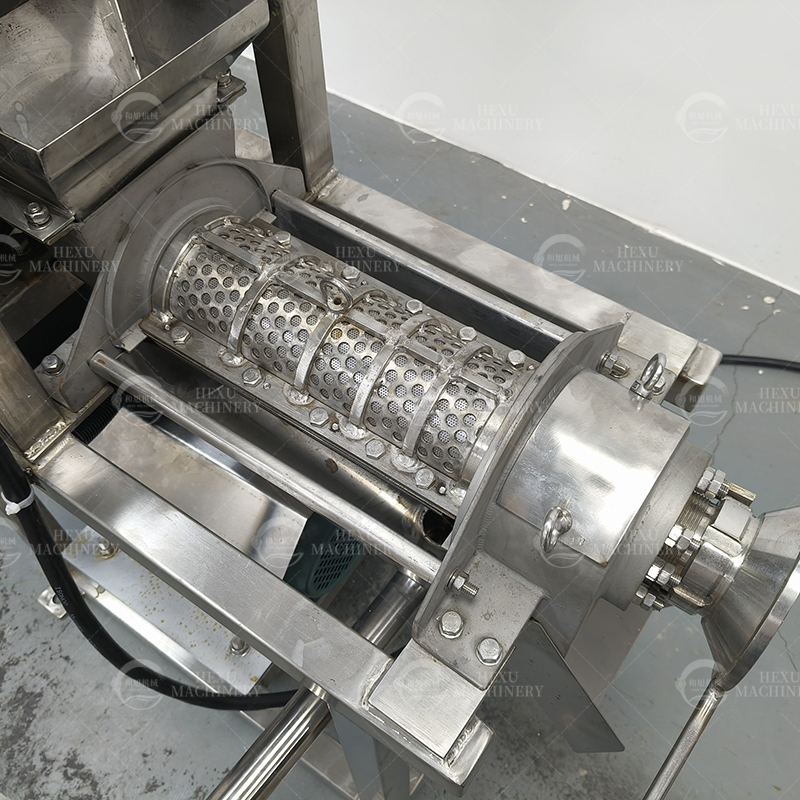

※ Under the pushing and pressing of the screw, the juice flows through the filter screen into the juice outlet pipe at the bottom, while the waste such as fruit peels and seeds are discharged through the tail of the machine.
※ The juice output effect can be changed by adjusting the gap inside the machine.

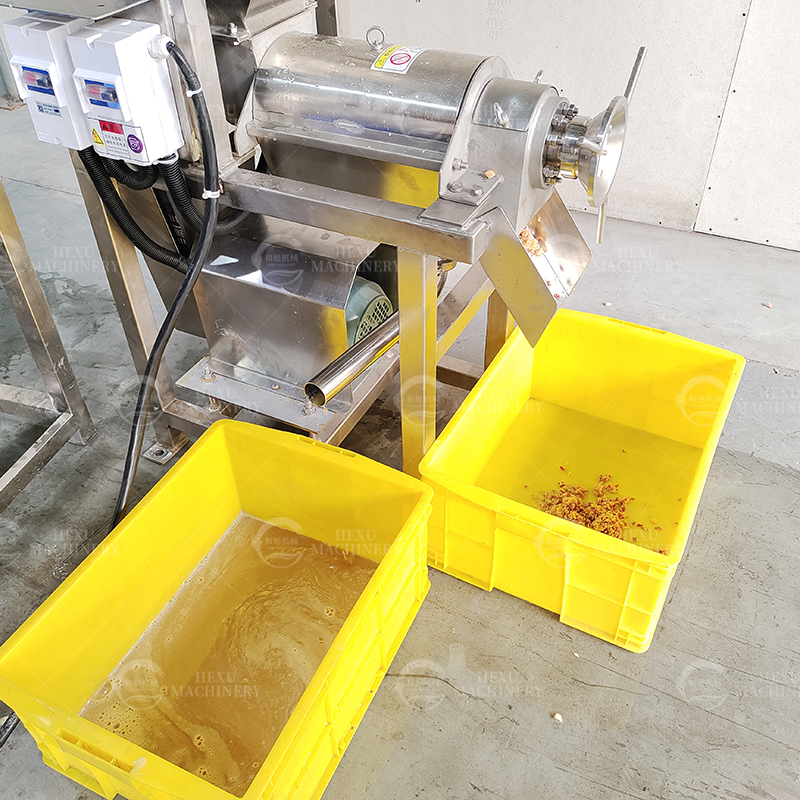

Finished Products Display:
